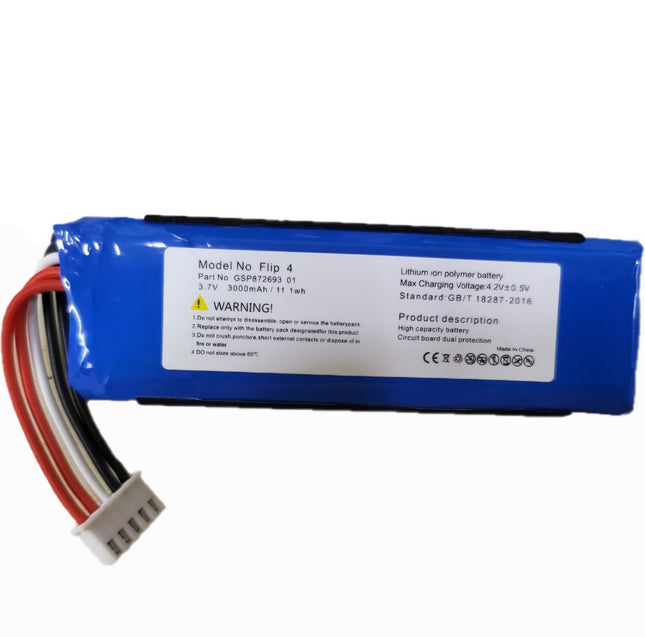

Replacement Battery for JBL Flip 4 Bluetooth Speaker
A direct-fit replacement pack for the JBL Flip 4, matching the original GSP872693-01 battery on
voltage, capacity and connector. It is a 3.7 V lithium-polymer pouch cell rated 3000 mAh
(11.1 Wh), fitted with the same 5-pin JST plug as the factory pack — so it goes straight in
with nothing to solder.
Fit this when your Flip 4 no longer holds charge, plays for a fraction of its old runtime, or shuts
down the moment you unplug it.
Battery Specifications
Model
JBL Flip 4
Part Number
GSP872693-01
BatteryWorks SKU
BW-RFlip4
Nominal Voltage
3.7 V
Capacity
3000 mAh
Energy
11.1 Wh
Max Charging Voltage
4.2 V ± 0.5 V
Chemistry
Lithium-ion polymer (Li-Po) pouch cell
Protection
Circuit board dual protection
Connector
5-pin JST (plug & play, no soldering)
Safety Standard
GB/T 18287-2016
Country of Origin
China
Key Features
Plug & play — original-fit 5-pin JST connector. Unplug the old pack,
plug this one in. No soldering, no rewiring.
Full capacity match — 3000 mAh at 3.7 V (11.1 Wh), the same rating as the
original GSP872693-01 pack, so the speaker returns to its full playback time.
Circuit board dual protection — an integrated protection board guards
against overcharge and over-discharge, as marked on the pack.
Built to standard — manufactured to GB/T 18287-2016, with a maximum
charging voltage of 4.2 V ± 0.5 V.
Tested before dispatch — every pack is checked for capacity and voltage at
BatteryWorks before it ships.
What's in the Box
1 × replacement battery pack with pre-fitted 5-pin JST connector
Before You Order
Check your existing pack. Open the speaker and confirm the old battery is marked
GSP872693-01 with a 5-pin JST plug. Other JBL Flip models use different packs that
will not fit.
Power the speaker off and disconnect it from mains before removing the old battery.
Opening the speaker may affect any remaining manufacturer warranty. If you are not comfortable
doing it, have it fitted by a qualified technician.
Charge only through the speaker's own charging circuit. Do not exceed 4.2 V.
Do not short the connector, disassemble, crush, pierce or expose the pack to fire or temperatures
above 60 °C. Discontinue use if it swells, overheats or is damaged by liquid.
JBL and Flip are trademarks of Harman International Industries. BatteryWorks is not affiliated
with, authorised by or endorsed by JBL or Harman. Model and part numbers are shown solely to indicate
compatibility.
All specifications are taken from the markings on the pack itself.
Brand: BatteryWorks | Part: GSP872693-01
| SKU: BW-RFlip4
